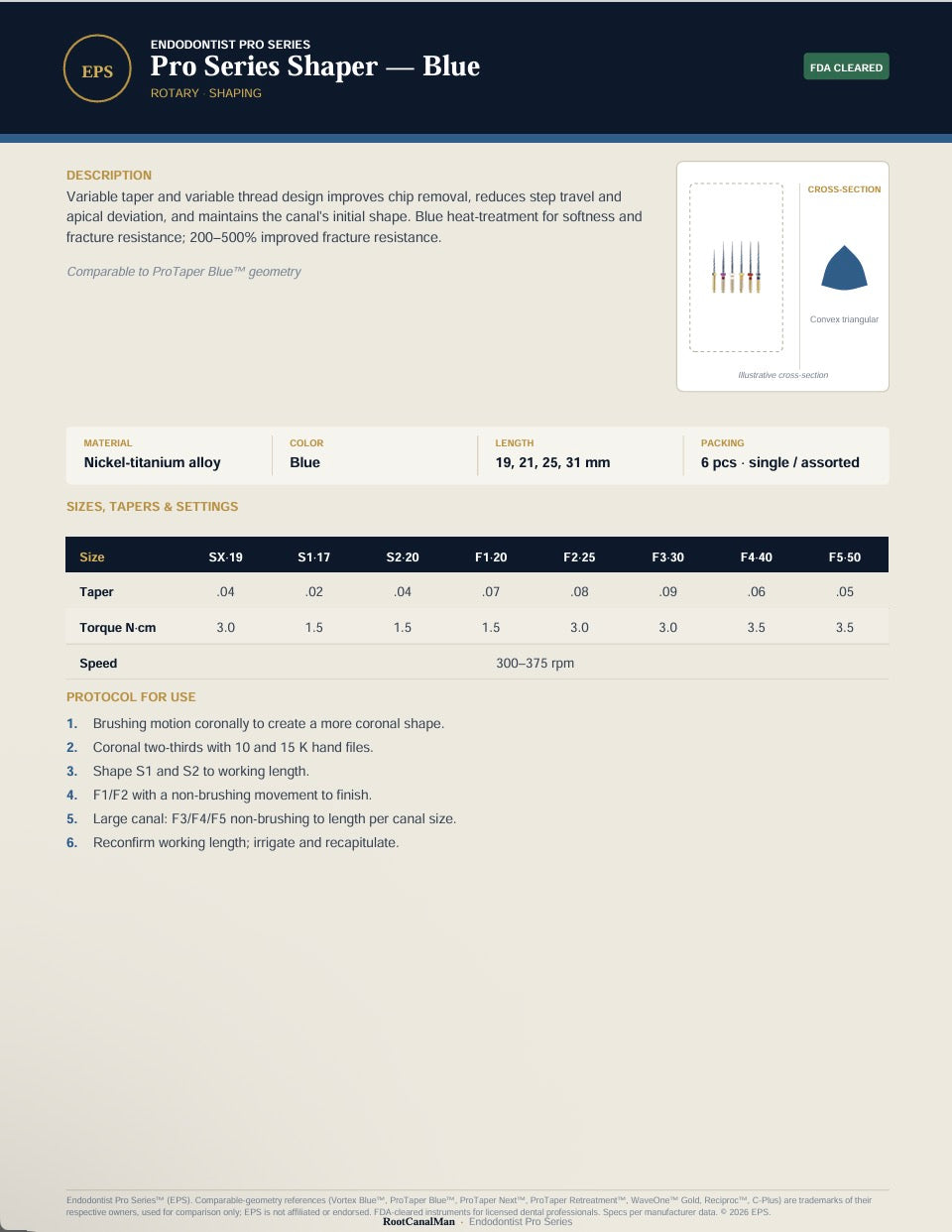

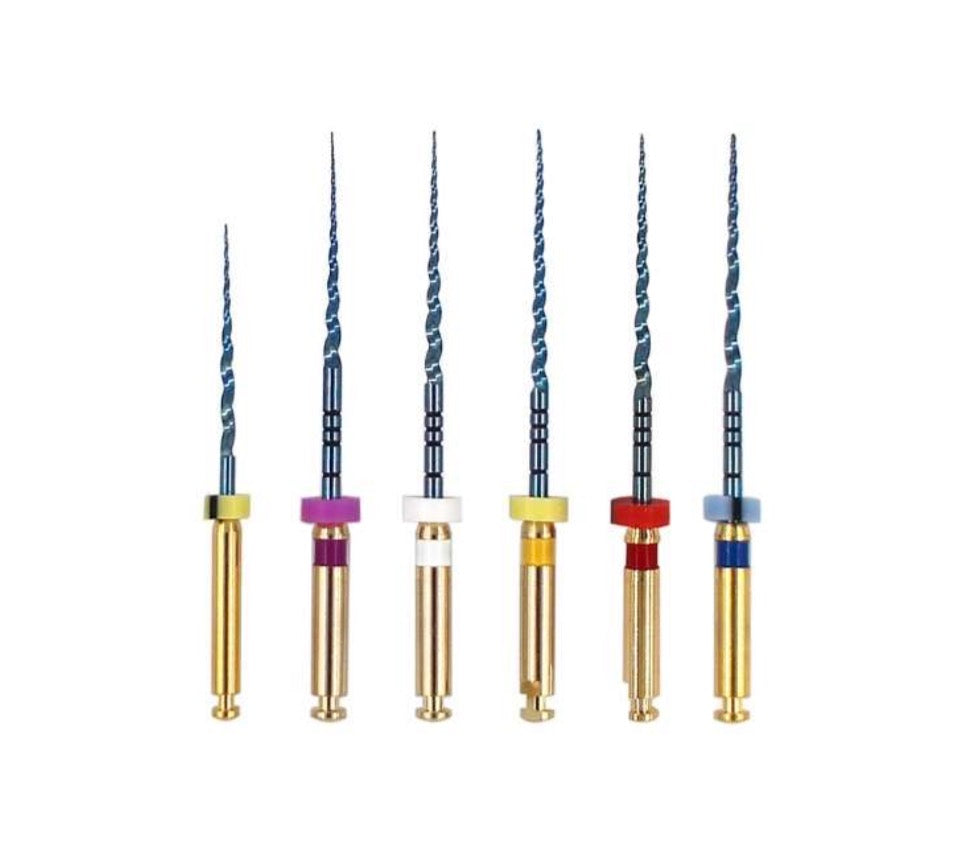

Variable-taper, variable-thread rotary shaping file for efficient chip removal with reduced step travel and apical deviation. Blue heat-treatment for softness and 200–500% improved fracture resistance.
Convex triangular cross-section
SX–F5 sequence, variable taper .02–.09
Lengths 19 / 21 / 25 / 31 mm
300–375 rpm
6 per pack, single or assorted
Protocol for use
Brushing motion coronally to create a more coronal shape.
Coronal two-thirds with 10 and 15 K hand files.
Shape S1 and S2 to working length.
F1/F2 with a non-brushing movement to finish; large canal F3/F4/F5 per size.
Reconfirm working length; irrigate and recapitulate.
FDA-cleared · Rx only · for use by licensed dental professionals. Comparable-geometry references are trademarks of their respective owners, used for comparison only.
